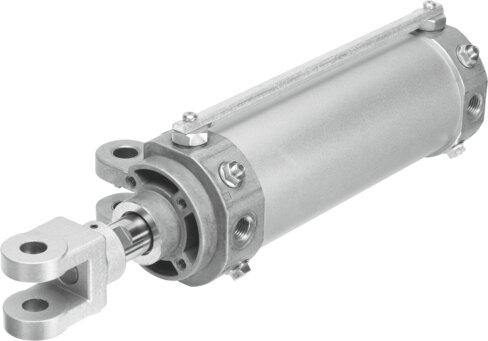

Hinge cylinder DWB-63-125-Y-A
The Festo part number 549581 is a double-acting industrial component featuring a 63 mm piston diameter, a 125 mm stroke, and an M16x1.5 piston rod thread with an external thread and rod clevis. This structural design includes a piston rod with a rod clevis, a swivel mounting on the bearing cap, a cylinder barrel, integrated flow control at both ends, and adjustable pneumatic cushioning at both ends for an impact energy of 1.3 J and a 20 mm cushioning length. It operates within a 1 bar to 10 bar pressure range using compressed air as per ISO 8573-1:2010 [7:4:4], supporting oil lubrication, any mounting position, an ambient temperature range of -10 °C to 60 °C, position sensing via proximity switch, and delivering a theoretical retracting force of 1682 N at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549581
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549581.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 125 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Wide rod clevis/swivel mounting
- 19.5 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod with rod clevis | Swivel mounting on bearing cap | Cylinder barrel
- Velocity control
- Integrated ow control at both ends
- Position sensing
- Via proximity switch
- Piston rod end
- External thread with rod clevis
- Operating pressure
- 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 1.3 J
- Cushioning length
- 20 mm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 741 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 1600 g
- Additional weight per 10 mm stroke
- 42 g
- Alternative connections
- See product drawing
- Type of mounting
- With swivel mounting on bearing cap | With accessories
- Pneumatic connection
- Rc1/4
- Rod clevis material
- Cast steel
