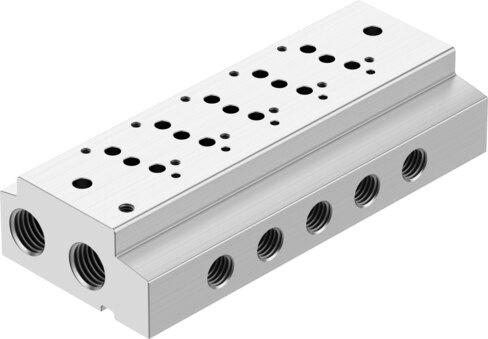

Reference imageConfirm configuration by manufacturer part number.
Festo
549651
Manifold rail VABM-C7-12W-G18-5
The Festo 549651 is an industrial component featuring a manifold rail constructed from wrought aluminum alloy with a product weight of 142 g. This assembly accommodates a maximum number of 5 valve positions and integrates pneumatic connection 1 via G1/8, pneumatic connection 2 via M7, pneumatic connection 3 via G1/8, and pilot air port 12 via M3. Featuring RoHS compliant materials, it meets VDMA24364-B2-L LABS conformity and offers a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549651
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549651.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 5
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 142 g
- Pilot air port 12
- M3
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M7
- Pneumatic connection 3
- G1/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549651. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
