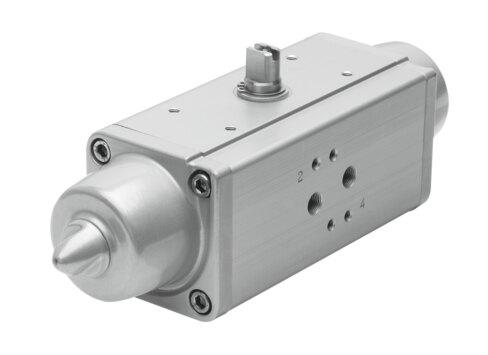

Name: Festo 549683 Quarter turn actuator DAPS-0720-090-RS3-F14
Brand: Festo

Quarter turn actuator DAPS-0720-090-RS3-F14

This Festo industrial component, part number 549683, features a size 0720 valve actuator utilizing a kinematic yoke system with an ISO 5211 F14 flange hole pattern and a 90-degree swivel angle. Operating in a single-acting mode with no cushioning or position sensing, it achieves a max swivel frequency of 1 Hz at 6 bar and maintains an operating pressure range of 4.2 bar to 8.4 bar alongside a spring force connection pressure of 4.2 bar. The unit provides an end-position adjusting range of -1 degrees to 9 degrees at 0 degrees and 81 degrees to 91 degrees at the nominal swivel angle, supporting safety integrity levels up to SIL 2 low demand mode. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549683
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549683.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0720
Flange hole pattern: F14
Swivel angle: 90 deg
End-position adjusting range at 0°: -1 deg...9 deg
End-position adjusting range at nominal swivel angle: 81 deg...91 deg
Depth shaft connection: 38.5 mm
Information on the end-position adjusting range: One end position optionally adjustable
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 low demand mode
Connection pressure for spring force: 0.42 MPa | 4.2 bar
Operating pressure: 0.42 MPa...0.84 MPa | 4.2 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
Max. swivel frequency at 6 bar: 1 Hz
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
