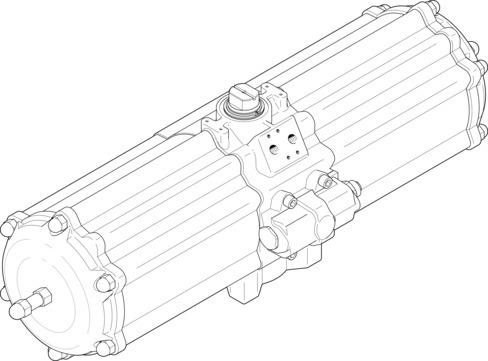

Name: Festo 549689 Quarter turn actuator DAPS-1920-090-RS1-F16
Brand: Festo

Quarter turn actuator DAPS-1920-090-RS1-F16

The Festo part number 549689 is a single-acting industrial component featuring a size 1920 valve actuator with an F16 flange hole pattern and a kinematic yoke system structural design. Operating within a pressure range of 2.8 bar to 8.4 bar at a nominal operating pressure of 5.6 bar, this unit delivers a 90-degree swivel angle that closes to the right, supported by an ISO 5211 standard valve connection and VDI/VDE 3845 NAMUR compliance. It includes an un-cushioned design with no position sensing, an ATEX-compliant CE marking, safety integrity level (SIL) up to SIL 2 low demand mode, and adjustable end-positions spanning -5 degrees to 5 degrees at 0 degrees and 85 degrees to 95 degrees at the nominal angle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 549689
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 549689.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 1920
Flange hole pattern: F16
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: 85 deg...95 deg
Depth shaft connection: 49 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 low demand mode
Connection pressure for spring force: 0.28 MPa | 2.8 bar
Operating pressure: 0.28 MPa...0.84 MPa | 2.8 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
Max. swivel frequency at 6 bar: 1 Hz
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
