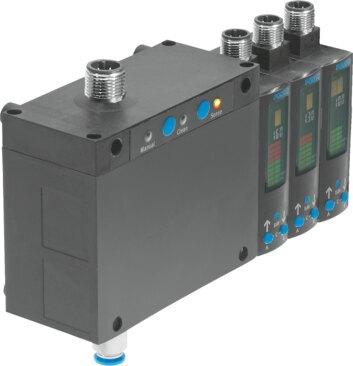

Reference imageConfirm configuration by manufacturer part number.
Festo
549902
Air gap sensor SOPA-...
The Festo part number 549902 is an industrial pneumatic distance measuring component with a sensing range of 20 µm to 200 µm and a repetition accuracy of ±2.5 µm. Operating at a pressure of 4 bar to 7 bar with a supply pressure of 0.8 bar to 1.6 bar using compressed air per ISO 8573-1:2010 [7:4:4], it features switchable 2xNPN, 2xPNP, or PNP/NPN outputs alongside configurable analog outputs of 0-10 V, 4-20 mA, and 1-5 V. This RoHS compliant device carries RCM, c UL us, CE, UKCA, and KC-EMV certifications, and supports oil lubrication during operation within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 549902
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 549902.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Detected variable
- Distance
- Measuring principle
- Pneumatic
- Sensing range
- 20 µm...200 µm
- Operating pressure
- 4 bar...7 bar
- Supply pressure
- 0.8 bar...1.6 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± µm
- 2.5 µm
- Switching output
- 2xNPN | 2xPNP | PNP/NPN switchable
- Switching function
- Window comparator | Threshold value with variable hysteresis
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V | 4 - 20 mA | 1 - 5 V
- Distance characteristic curve start value
- 0 µm
- Distance characteristic curve end value
- 300 µm
- Rise time
- 22 ms
- Max. load resistance of current output
- 500 Ohm
- Min. load resistance of voltage output
- 20 kOhm
- Short-circuit protection
- Yes
- Protocol
- IO-Link®
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 549902. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
