Festo
550067
Plug socket MSSD-N

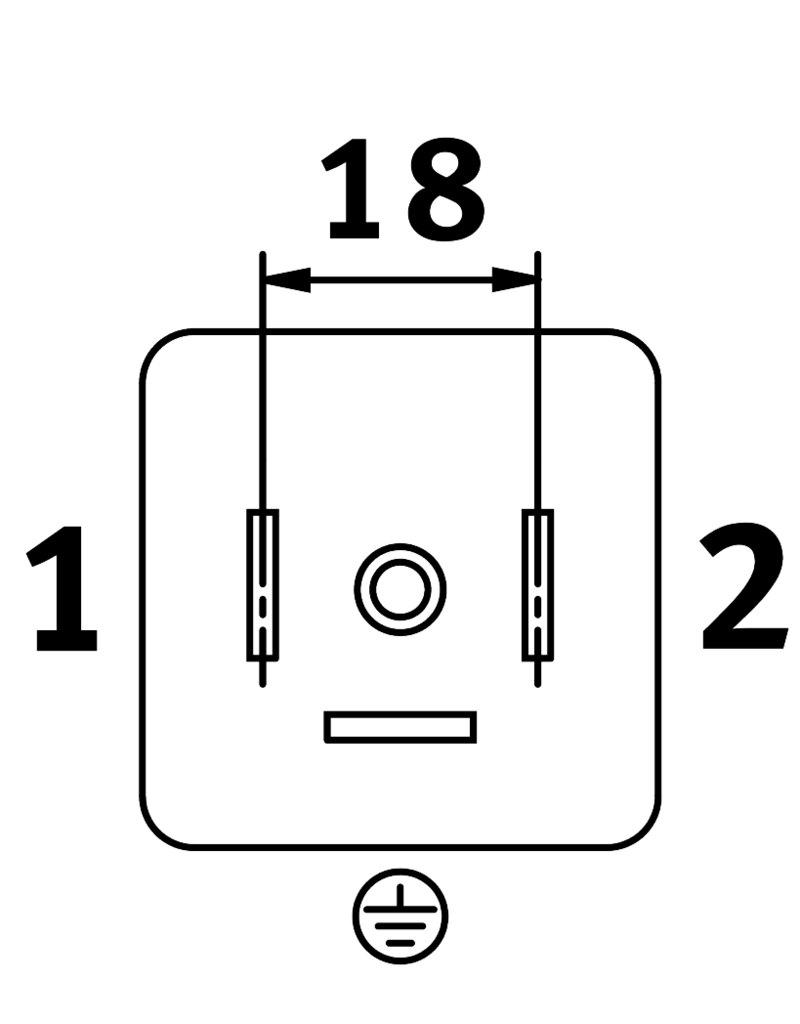

The Festo 550067 is an industrial component featuring an angled cable outlet and a square socket with a 3-pin connection diagram form A based on norm EN 175301-803. Weighing 30 g, this RoHS compliant part mounts on an air solenoid valve via an M3 central screw and accommodates an 8 mm to 10 mm cable diameter through an M20x1.5 cable fitting with screw terminals. It operates within a 0 V to 24 V DC and 0 V to 250 V AC range, handles a current rating of 16 A at 40° C, and provides IP65 protection in the mounted state across an ambient temperature range of -25 °C to 80 °C with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550067
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550067.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 175301-803
- Cable outlet
- Angled
- Product weight
- 30 g
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram form A as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- On air solenoid valve with M3 central screw
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 0 V...24 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 16 A
- Cable tting
- M20x1.5
- Cable diameter
- 8 mm...10 mm
- Nominal conductor cross section
- 1.5 mm²
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Housing colour
- Black
- Material of screws
- Steel
- Seals material
- VMQ
