Festo
550078

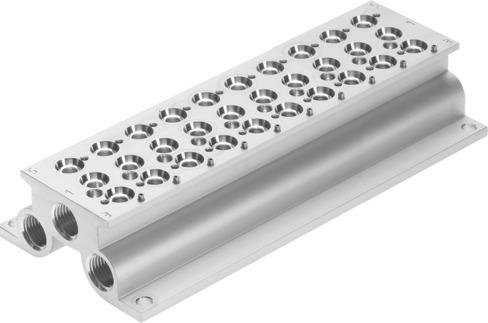

Manifold block CPE10-PRS-1/4-10-NPT
The Festo 550078 is an 18 oz industrial component featuring a 16 mm width dimension, a wrought aluminum alloy manifold rail, and through-hole mounting. It supports any mounting position, up to 10 valve positions, and 2 pressure zones, with pneumatic connections 1, 3, and 5 utilizing 1/4 NPT threads. Operating parameters include an operating pressure range of -0.09 MPa to 1 MPa, a burst pressure of 5 MPa, and medium and ambient temperatures between 23 °F and 122 °F. Complying with RoHS standards and VDMA24364-B1/B2-L LABS conformity, this RoHS-compliant part features a CRC 2 moderate corrosion stress rating and requires a maximum valve mounting tightening torque of 0.9 ft-lbf using internal thread pneumatic valve mounting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550078
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550078.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 10
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 23 °F...122 °F
- Ambient temperature
- 23 °F...122 °F
- Max. tightening torque for valve mounting
- 0.9 ft-lbf
- Product weight
- 18 oz
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- 1/4 NPT
- Pneumatic connection 3
- 1/4 NPT
- Pneumatic connection 5
- 1/4 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
