Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

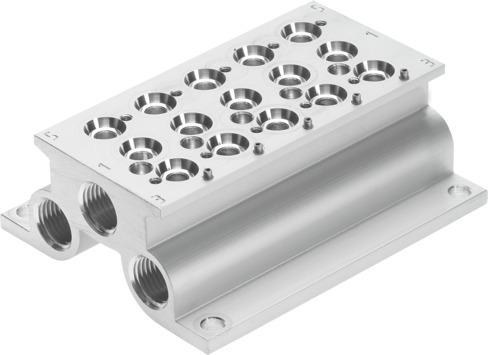

Reference imageConfirm configuration by manufacturer part number.
Festo
550082
Manifold block CPE14-PRS-3/8-5-NPT
The Festo 550082 industrial component features a wrought aluminum alloy manifold rail with a 20 mm width, supporting up to 5 valve positions and 2 pressure zones via through-hole mounting. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a burst pressure rating of 5 MPa (50 bar | 725 psi), this RoHS-compliant assembly accommodates 3/8 NPT pneumatic connections 1, 3, and 5 with an internal thread valve mounting type requiring a max tightening torque of 0.9 ft-lbf. The unit exhibits a moderate corrosion stress rating (CRC 2), VDMA24364-B1/B2-L LABS conformity, a product weight of 17.4 oz, and functions across a medium and ambient temperature range of 23 °F to 122 °F in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550082
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550082.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 20 mm
- Mounting position
- Any
- Max. no. of valve positions
- 5
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 23 °F...122 °F
- Ambient temperature
- 23 °F...122 °F
- Max. tightening torque for valve mounting
- 0.9 ft-lbf
- Product weight
- 17.4 oz
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 3
- 3/8 NPT
- Pneumatic connection 5
- 3/8 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550082. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
