Festo
550090

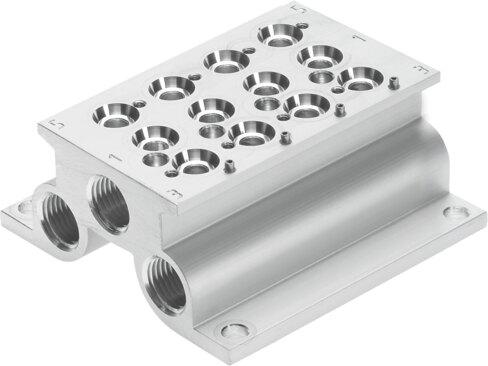

Manifold block CPE18-PRS-3/8-4-NPT
The Festo 550090 is an industrial component featuring a 26 mm width dimension, a wrought aluminum alloy manifold rail material, and a product weight of 21.4 oz with through-hole manifold block mounting and internal thread pneumatic valve mounting. Designed with any mounting position, it supports up to 4 valve positions, 2 pressure zones, and utilizes 3/8 NPT connections for pneumatic connections 1, 3, and 5. This RoHS compliant part operates within an ambient and medium temperature range of 23 °F to 122 °F, an operating pressure of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), a burst pressure of 5 MPa (50 bar / 725 psi), a maximum valve mounting tightening torque of 1.5 ft-lbf, a CRC rating of 2 for moderate corrosion stress, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550090
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550090.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 4
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 23 °F...122 °F
- Ambient temperature
- 23 °F...122 °F
- Max. tightening torque for valve mounting
- 1.5 ft-lbf
- Product weight
- 21.4 oz
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 3
- 3/8 NPT
- Pneumatic connection 5
- 3/8 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
