Festo
550092

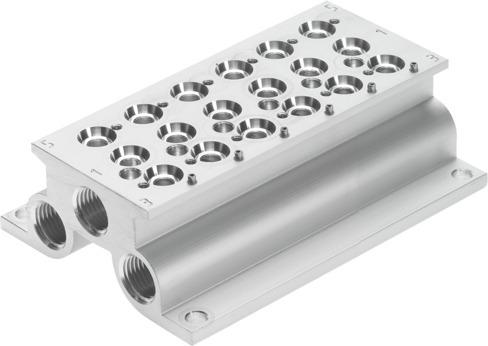

Manifold block CPE18-PRS-3/8-6-NPT
Manufactured by Festo from wrought aluminum alloy with a width dimension of 26 mm and a product weight of 30.5 oz, this industrial component features through-hole manifold block mounting, internal thread pneumatic valve mounting, and supports up to 6 valve positions across 2 pressure zones with 3/8 NPT connections for ports 1, 3, and 5. The unit operates within a temperature range of 23 °F to 122 °F for both ambient environments and media, handling operating pressures from -0.09 MPa to 1 MPa alongside a burst pressure rating of 5 MPa. Meeting RoHS compliance, VDMA24364-B1/B2-L LABS conformity, and a CRC rating of 2 for moderate corrosion stress, the assembly accommodates any mounting position and requires a maximum tightening torque of 1.5 ft-lbf for valve installation. Submit part number 550092, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550092
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550092.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 6
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 23 °F...122 °F
- Ambient temperature
- 23 °F...122 °F
- Max. tightening torque for valve mounting
- 1.5 ft-lbf
- Product weight
- 30.5 oz
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 3
- 3/8 NPT
- Pneumatic connection 5
- 3/8 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
