Festo
550153

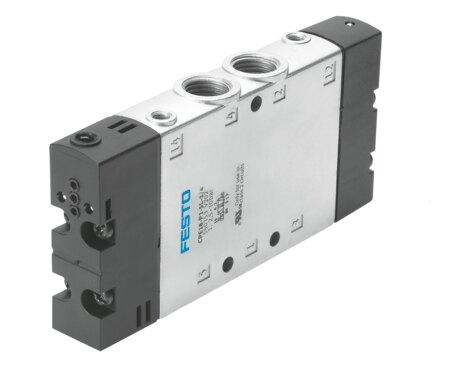

Basic valve CPE18-P1-5L-1/4
The Festo 550153 is an 18 mm wide industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1500 l/min through G1/4 pneumatic working ports across an operating pressure range of 2.5 bar to 10 bar utilizing internal pilot air supply. Actuated via an ISO 15218 pilot control interface, this piloted component includes an adjustable exhaust air function, non-detenting manual override, and pneumatic spring reset, with c UL us recognition and DNV maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550153
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550153.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Via ISO 15218 pilot control interface
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1500 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 32 ms
- On switching time
- 30 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
- Permissible voltage uctuations
- -15% / +10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550153. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
