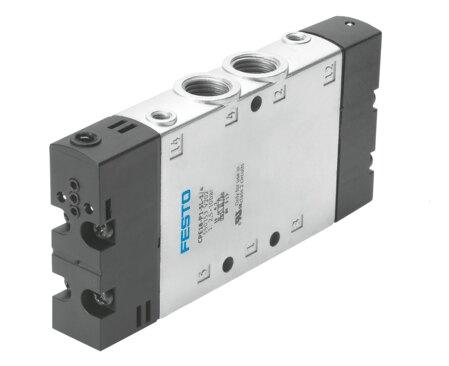

Name: Festo 550154 Basic valve CPE18-P1-5LS-1/4
Brand: Festo

Basic valve CPE18-P1-5LS-1/4

The Festo 550154 is an 18 mm wide industrial component featuring a 5/2-way monostable valve function with a piston gate valve structural design and soft sealing principle. This piloted valve operates across a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) via an ISO 15218 pilot control interface with external pilot air supply and an adjustable exhaust air function. It delivers a normal nominal flow rate of 1500 l/min through G1/4 pneumatic working ports, utilizing a pneumatic spring reset method and a non-detenting manual override in any mounting position. The unit carries c UL us recognition, CE marking per the EU low voltage directive, UKCA marking, and DNV maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550154
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550154.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Via ISO 15218 pilot control interface
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 1500 l/min
Pneumatic working port: G1/4
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Certicate issuing authority: DNV-TAA000032X | UL MH19482
Nominal width: 8 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Valve position ID: Label holder
Lap: Positive overlap
Pilot pressure MPa: 0.25 MPa...1 MPa
Pilot pressure: 2.5 bar...10 bar
Switching time oﬀ: 32 ms
On switching time: 30 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3300 µs
Max. negative test pulse on 1 signal: 3100 µs
