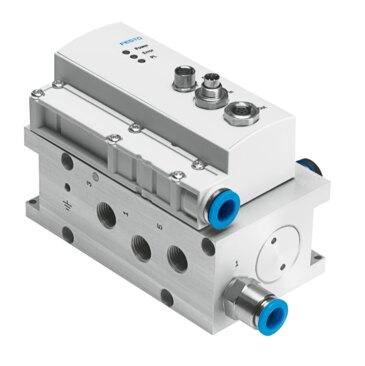

Reference imageConfirm configuration by manufacturer part number.
Festo
550171
Proportional directional control valve VPWP-6-
Engineered with a 6 mm nominal width and a piston gate valve structural design featuring integrated pressure sensors, this Festo 550171 is a 5/3 proportional directional control valve, closed, with a hard sealing principle and direct type of control. It operates within a pressure range of 0 bar to 10 bar (0 MPa to 1 MPa) at a nominal operating pressure of 6 bar (87 psi) and delivers a normal nominal flow rate of 700 l/min utilizing a 24 V DC nominal operating voltage. The unit incorporates status indications via yellow, green, and red LEDs, a magnetic spring reset method, and a VPWP safety position that approaches the blocked mid-position during a control interface malfunction. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6 mm
- Actuation type
- Electrical
- Sealing principle
- Hard
- Mounting position
- Any | Preferably horizontal (display elements facing upwards); if the | pneumatic valve is moved, it must be mounted at right angles to the | direction of movement
- Structural design
- Piston gate valve | With integrated pressure sensors
- Reset method
- Magnetic spring
- Safety instructions
- VPWP safety position: the blocked mid-position is approached in case of | a control interface malfunction.
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve function
- 5/3 proportional directional control valve, closed
- Status indications
- LED yellow = PL (power load) | LED green = power | Red LED = error
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Operating pressure for positioning/soft stop
- 4 bar...8 bar
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Nominal operating voltage DC
- 24 V
- DC operating voltage range
- 18 V...30 V
- Load voltage range DC
- 18 V...30 V
- Max. load current at voltage output
- 500 mA
- Max. load current of the digital output
- 500 mA
- Max. current consumption, valve drive
- 1.2 A
- Logic max. current consumption
- 0.15 A
- Nominal voltage DC
- 24 V
- Supply voltage of the digital output
- 24 V load voltage
