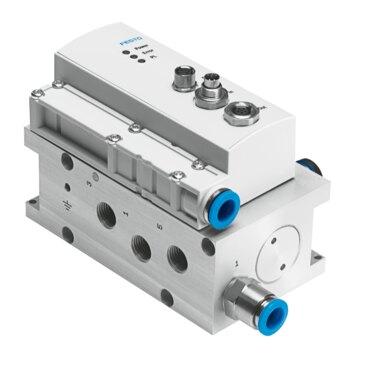

Reference imageConfirm configuration by manufacturer part number.
Festo
550172
Proportional directional control valve VPWP-8-
The Festo 550172 is a 5/3 proportional directional control valve featuring a closed piston gate valve structural design with integrated pressure sensors and an 8 mm nominal width. This electrical, directly controlled component operates within a pressure range of 0 bar to 10 bar, a nominal operating pressure of 6 bar (87 psi), and delivers a normal nominal flow rate of 1400 l/min utilizing a hard sealing principle. Powered by a 24 V DC nominal operating voltage with an 18 V to 30 V DC range, it incorporates LED status indications, a magnetic spring reset method, and a VPWP safety position that approaches a blocked mid-position during control interface malfunctions. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550172
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550172.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Actuation type
- Electrical
- Sealing principle
- Hard
- Mounting position
- Any | Preferably horizontal (display elements facing upwards); if the | pneumatic valve is moved, it must be mounted at right angles to the | direction of movement
- Structural design
- Piston gate valve | With integrated pressure sensors
- Reset method
- Magnetic spring
- Safety instructions
- VPWP safety position: the blocked mid-position is approached in case of | a control interface malfunction.
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve function
- 5/3 proportional directional control valve, closed
- Status indications
- LED yellow = PL (power load) | LED green = power | Red LED = error
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Operating pressure for positioning/soft stop
- 4 bar...8 bar
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Nominal operating voltage DC
- 24 V
- DC operating voltage range
- 18 V...30 V
- Load voltage range DC
- 18 V...30 V
- Max. load current at voltage output
- 500 mA
- Max. load current of the digital output
- 500 mA
- Max. current consumption, valve drive
- 1.2 A
- Logic max. current consumption
- 0.15 A
- Nominal voltage DC
- 24 V
- Supply voltage of the digital output
- 24 V load voltage
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550172. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
