550202

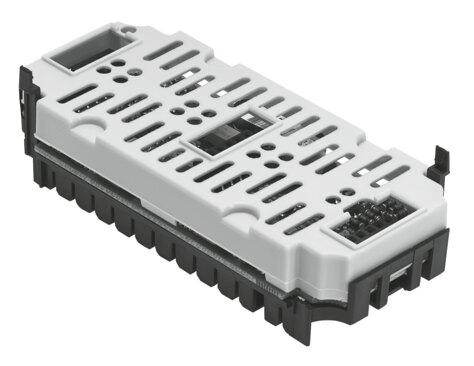

Name: Festo 550202 Input module CPX-M-16DE-D
Brand: Festo

Input module CPX-M-16DE-D

The Festo 550202 is an industrial component featuring 16 PNP inputs, a nominal DC operating voltage of 24 V, and integrated LED indicators for group diagnostics and channel status. Constructed with a reinforced PA and PC housing measuring 50 mm x 107 mm x 50 mm with a product weight of 46 g, this module operates within an ambient temperature range of -5 °C to 50 °C. It provides parameterizable input debounce times, short-circuit diagnostics per channel, and a low corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550202
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550202.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 46 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 16 channel diagnostics/channel status
Diagnostics: Short circuit/overload per channel
Parameterization: Input debounce time | Signal extension time | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 34 mA
No. of inputs: 16
Input characteristics: IEC1131-T2
Switching level: Signal 0: <= 5 V | Signal 1: >= 11 V
Input switching logic: PNP (positive switching)
Input debounce time: 3 ms (0.1 ms, 10 ms, 20 ms parameterizable)
Max. residual current of inputs per module: 1.8 A
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: No
Fuse protection (short circuit): Internal electronic fuse per channel pair | Additional safety fuse

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 550202. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
