Name: Festo 550204 Output module CPX-8DA-H
Brand: Festo

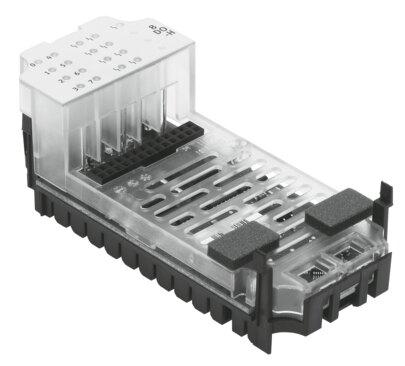

Output module CPX-8DA-H

The Festo 550204 is an industrial component featuring 8 PNP outputs and comprehensive diagnostic capabilities, including group diagnostics, 8-channel diagnostics, and 8-channel status via LED indicators. Measuring 50 mm by 107 mm by 50 mm with an installed corrosion resistance class of 1, this module operates on a nominal DC voltage of 24 V within a range of 18 V to 30 V and consumes an intrinsic current of 34 mA. Parameterization options include failsafe, forcing, idle mode per channel, response to short circuit, and module monitoring while utilizing a PA-reinforced and PC housing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550204
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550204.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
Product weight: 48 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: Depending on terminal block
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced | PC
LED indicators: 1 group diagnostics | 8 channel diagnostics | 8 channel status
Diagnostics: Short circuit/overload per channel | Undervoltage of outputs
No. of outputs: 8
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Response to short circuit | Module monitoring
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 34 mA
Characteristic curve outputs: Based on IEC1131-T2
Switching logic at outputs: PNP (positive switching)
Max. residual current of outputs per module: 8.4 A
Max. power supply per channel: 2.1 A (50 W lamp load), per channel pair
Electrical isolation between channels: No
Electrical isolation between channel and internal bus: Yes, when using intermediate feed
Fuse protection (short circuit): Internal electronic fuse per channel | Additional safety fuse
