Festo
550227

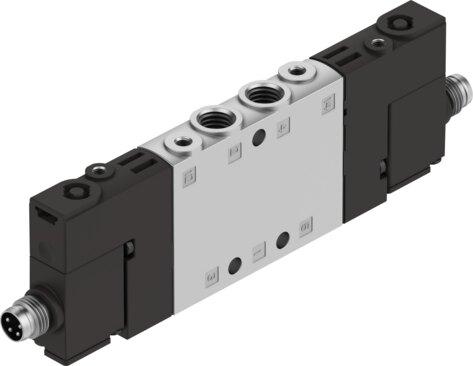

Air solenoid valve CPE10-M1CH-5/3G-M7
The Festo 550227 is a 10 mm wide electrical industrial component featuring a 5/3-way closed valve function and a piston gate valve structural design with a soft sealing principle. This piloted component operates on 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), delivering a normal nominal flow rate of 350 l/min through an M7 pneumatic working port and a 4 mm nominal width. Certified by c UL us - recognized (OL) and DNV-TAA000032X, it offers IP65 and IP67 degrees of protection when used with a plug socket in any mounting position, alongside an adjustable exhaust air function, mechanical spring reset method, and internal pilot air supply. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550227
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550227.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 350 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Nominal width
- 4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 20 ms
- On switching time
- 16 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
