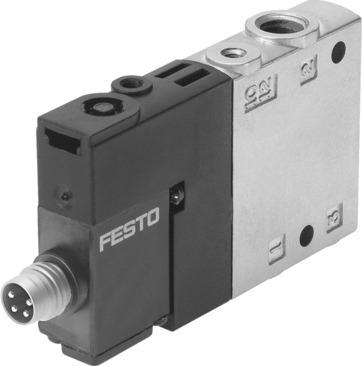

Reference imageConfirm configuration by manufacturer part number.
Festo
550234
Air solenoid valve CPE10-M1CH-3GLS-M7
The Festo part number 550234 is an electrical 3/2-way closed monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and non-reversible flow direction. Featuring a 10 mm width, 4 mm nominal width, M7 pneumatic working port, external pilot air supply port, and pneumatic spring reset method, this piloted valve operates on 24V DC at pressures ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) with a normal nominal flow rate of 400 l/min. It includes detenting via accessory and non-detenting manual override options, offers IP65 and IP67 degrees of protection with a plug socket as per IEC 60529, can be mounted in any position, and carries c UL us recognized (OL) and DNV-TAA000032X maritime certifications. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Nominal width
- 4 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...0.8 MPa
- Pilot pressure
- 2.5 bar...8 bar
- Switching time off
- 14 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
