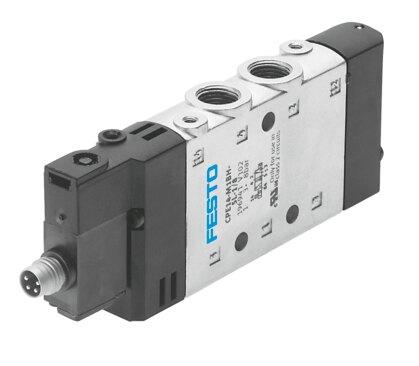

Reference imageConfirm configuration by manufacturer part number.
Festo
550237
Air solenoid valve CPE14-M1CH-5L-1/8
The Festo 550237 is a 5/2-way monostable industrial component utilizing a piston gate valve design with piloted control and internal pilot air supply. Featuring a 14 mm width, a 6 mm nominal width, G1/8 pneumatic working ports, and an 800 l/min normal nominal flow rate, this unit operates on 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It incorporates soft sealing, an adjustable exhaust air function, a pneumatic spring reset method, detenting via accessory and non-detenting manual override, and IP65, IP67 protection with a plug socket as per IEC 60529. Certified by c UL us - recognized (OL) and DNV-TAA000032X with maritime classification, it supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550237
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550237.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 32 ms
- On switching time
- 24 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
