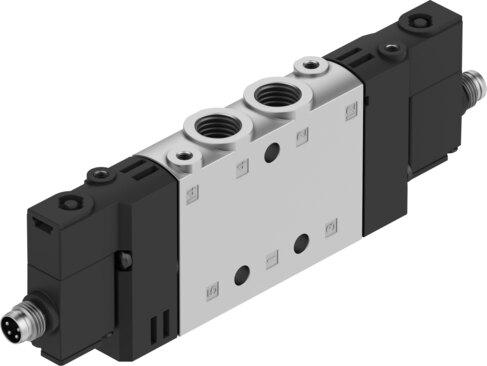

Reference imageConfirm configuration by manufacturer part number.
Festo
550240
Air solenoid valve CPE14-M1CH-5JS-1/8
The Festo 550240 is an electrical 5/2-way bistable piston gate valve featuring a 14 mm width, a 6 mm nominal width, and a normal nominal flow rate of 800 l/min normalized to DIN 1343. This piloted component operates at 24V DC with a working pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and incorporates G1/8 pneumatic working ports, an external pilot air supply port, adjustable exhaust air, and a reversible flow direction. Built with a soft sealing principle and offering IP65 and IP67 protection ratings with a plug socket per IEC 60529, it includes both non-detenting and accessory-detenting manual override options for any mounting position. Certified by cUL us - recognized (OL) and DNV-TAA000032X, this unit meets specific maritime classification standards. Submit your exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550240
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550240.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...0.8 MPa
- Pilot pressure
- 2 bar...8 bar
- Changeover time
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
