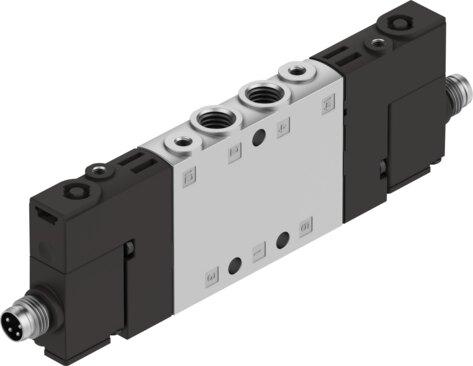

Reference imageConfirm configuration by manufacturer part number.
Festo
550243
Air solenoid valve CPE14-M1CH-5/3E-1/8
The Festo 550243 is an electrical 5/3 exhausted piston gate valve featuring a 14 mm width, a nominal width of 6 mm, and a normal nominal flow rate of 700 l/min normalized to DIN 1343. This piloted component operates at 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) utilizing internal pilot air supply, a soft sealing principle, an adjustable exhaust air function, and a mechanical spring reset method with G1/8 pneumatic working ports. Rated to IP65 and IP67 with a plug socket per IEC 60529, it includes both non-detenting and accessory-detenting manual override options, can be mounted in any position, and holds c UL us and DNV maritime certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550243
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550243.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 42 ms
- On switching time
- 20 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550243. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
