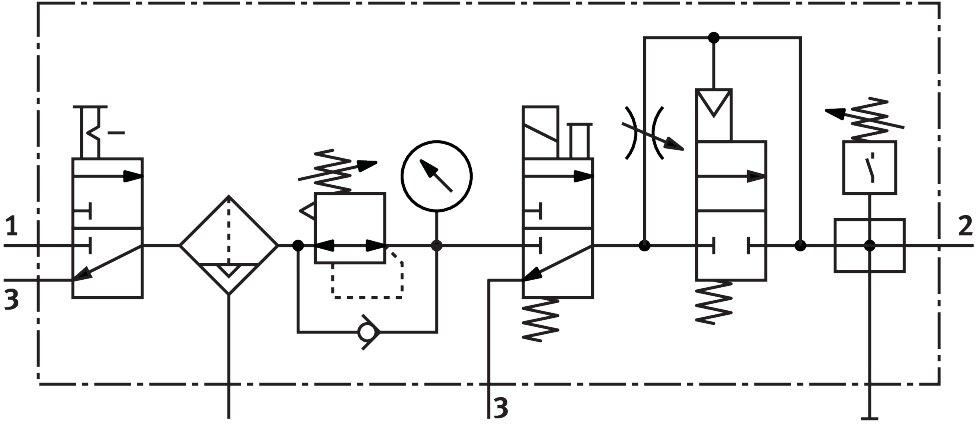

Reference imageConfirm configuration by manufacturer part number.
Festo
550484
Air preparation combination unit MSB4N-1/4:C3J1M1D7A1F3-WP
The Festo 550484 is a size 4 industrial component from the MS series featuring a structural design that integrates a branching module, soft-start valve, pressure switch, on/off valve, and a filter regulator with a pressure gauge. This unit operates within a pressure range of 4.5 bar to 10 bar, provides a pressure regulation range of 4 bar to 9 bar, and delivers a normal nominal flow rate of 600 l/min utilizing 24 V DC 1.8 W coil characteristics. The assembly includes a 40 µm filtration grade, a manual rotating condensate drain, a plastic bowl guard, and a rotary knob actuator lock with detent that can be closed with accessories. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550484
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550484.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Branching module | Soft-start valve | Pressure switch | On/off valve | Filter regulator with pressure gauge
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 4.5 bar...10 bar
- Pressure regulation range
- 4 bar...9 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Coil characteristics
- 24 V DC: 1.8 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-]
- Temperature of medium
- -10 °C...50 °C
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 2200 g
- Type of mounting
- With accessories
