Festo
550497

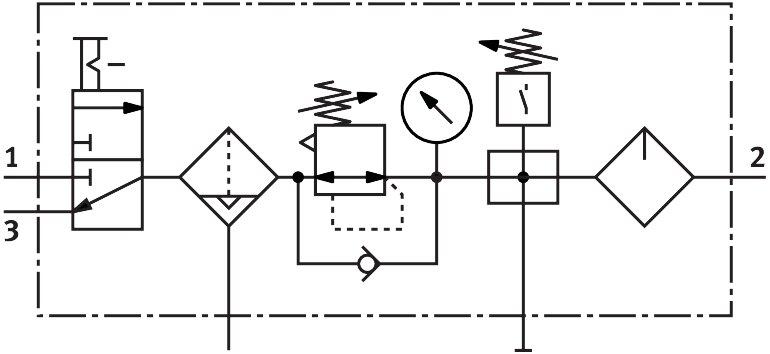

Air preparation combination unit MSB4N-1/4:J4D7A1-WP
The Festo 550497 is an MS series industrial component in size 4, featuring a structural design that integrates a branching module, on/off valve, filter regulator with pressure gauge, and standard mist lubricator. This unit operates within a 4.5 bar to 10 bar pressure range, delivers a normal nominal flow rate of 700 l/min, and provides a pressure regulation range of 4 bar to 9 bar with a 5 µm filtration grade. Designed with a fully automatic condensate drain, plastic bowl guard, and a rotary knob actuator lock with detent, it functions on compressed air per ISO 8573-1:2010 [7:4:-] or inert gases with 24 V DC, 1.8 W coil characteristics. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550497
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550497.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic
- Structural design
- Branching module | On/off valve | Filter regulator with pressure gauge | Standard mist lubricator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 4.5 bar...10 bar
- Pressure regulation range
- 4 bar...9 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Coil characteristics
- 24 V DC: 1.8 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium
- -10 °C...50 °C
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 1600 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/4 NPT
