Name: Festo 550512 Air preparation combination unit MSB6N-1/2:J3M1D7A1-WP
Brand: Festo

Air preparation combination unit MSB6N-1/2:J3M1D7A1-WP

The Festo part number 550512 is an industrial component from the MS series, size 6, featuring a soft-start valve, on/off valve, filter regulator with pressure gauge, and standard mist lubricator. This unit operates within a 4.5 bar to 10 bar operating pressure range, provides a regulation range of 4 bar to 9 bar, and delivers a normal nominal flow rate of 1900 l/min using compressed air or inert gases. It includes a 5 µm filtration grade, a manual rotating condensate drain, a plastic bowl guard, a rotary knob actuator lock with detent, and a 24 V DC 2.5 W coil. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550512
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550512.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 6
Series: MS
Actuator lock: Rotary knob with detent | can be closed with accessories
Mounting position: Vertical ±5°
Grade of ltration: 5 µm
Condensate drain: Manual, rotating

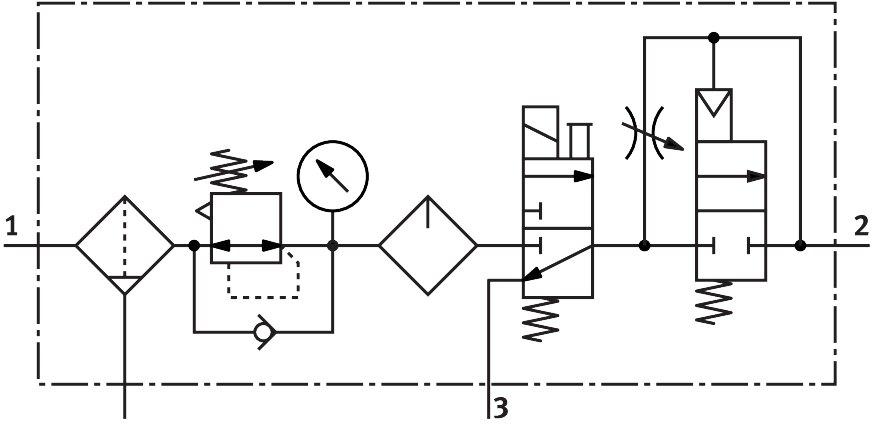

Structural design: Soft-start valve | On/oﬀ valve | Filter regulator with pressure gauge | Standard mist lubricator
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
Bowl guard: Plastic bowl guard
Pressure gauge: with pressure gauge
Operating pressure: 4.5 bar...10 bar
Pressure regulation range: 4 bar...9 bar
Normal nominal ow rate (normalized to DIN 1343): 1900 l/min
Coil characteristics: 24 V DC: 2.5 W
Operating medium: Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
For use in the food industry: See supplementary material information
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:4:-]
Temperature of medium: -10 °C...50 °C
Ambient temperature: -10 °C...50 °C
Product weight: 3000 g
Type of mounting: With accessories
Pneumatic connection 1: 1/2 NPT

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 550512. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
