Festo
550514

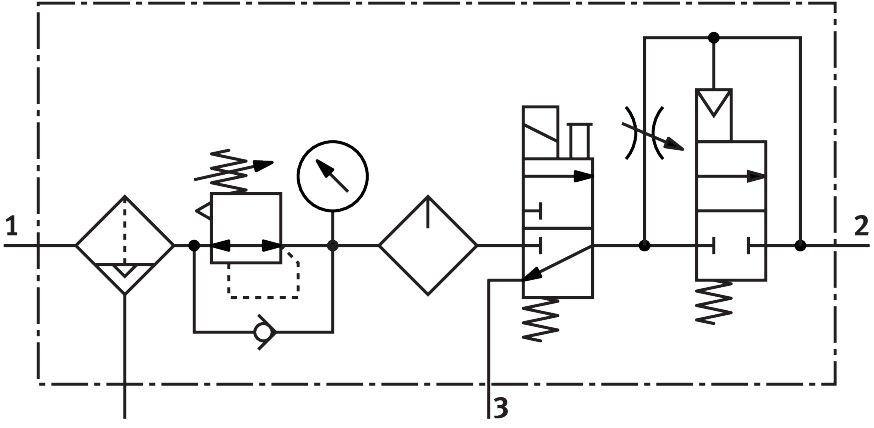

Air preparation combination unit MSB6N-1/2:J4M1D7A1-WP
The Festo part number 550514 is a size 6 industrial component from the MS series featuring a soft-start valve, an on/off valve, a filter regulator with a pressure gauge, and a standard mist lubricator. It offers a 5 µm filtration grade, fully automatic condensate drain, rotary knob with detent actuator lock, and a normal nominal flow rate of 1900 l/min within an operating pressure range of 4.5 bar to 10 bar. Designed for vertical ±5° mounting, this unit operates with compressed air as per ISO 8573-1:2010 [7:4:-] or inert gases at a regulation range of 4 bar to 9 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550514
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550514.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic
- Structural design
- Soft-start valve | On/off valve | Filter regulator with pressure gauge | Standard mist lubricator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 4.5 bar...10 bar
- Pressure regulation range
- 4 bar...9 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1900 l/min
- Coil characteristics
- 24 V DC: 2.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:-]
- Temperature of medium
- 5 °C...50 °C
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 3000 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- 1/2 NPT
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550514. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
