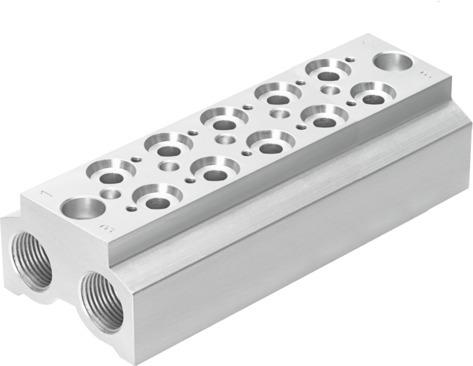

Reference imageConfirm configuration by manufacturer part number.
Festo
550562
Manifold block CPE14-3/2-PRS-3/8-5
The Festo 550562 is an industrial component featuring a wrought aluminum alloy manifold rail with a 20 mm width dimension and a manifold block mounting design utilizing a through-hole. This unit supports up to 5 valve positions and 2 pressure zones, accommodating pneumatic connections via G3/8 internal threads for ports 1, 3, and 5 with a maximum valve mounting tightening torque of 1.2 Nm. Operating pressure ranges from -0.09 MPa to 1 MPa alongside a burst pressure of 5 MPa, while maintaining a moderate corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity across medium and ambient temperature ranges of -5 °C to 50 °C. Weighing 332 g with RoHS-compliant materials, it can be installed in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550562
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550562.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 20 mm
- Mounting position
- Any
- Max. no. of valve positions
- 5
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 1.2 Nm
- Product weight
- 332 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
