Festo
550566

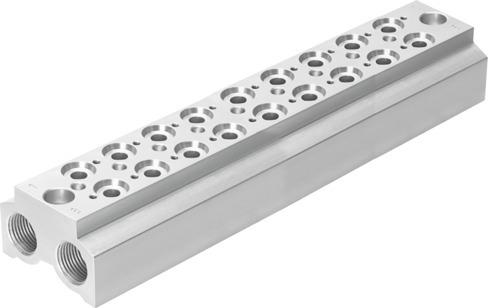

Manifold block CPE14-3/2-PRS-3/8-9
The Festo 550566 is an industrial component featuring a wrought aluminum alloy manifold rail with a 20 mm width dimension and a weight of 540 g. It supports any mounting position, up to 9 valve positions, and up to 2 pressure zones, utilizing through-hole manifold mounting and internal thread pneumatic valve mounting with a maximum tightening torque of 1.2 Nm. Operating pressure ranges from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) with a burst pressure of 5 MPa (50 bar / 725 psi), accommodating medium and ambient temperatures from -5 °C to 50 °C, G3/8 pneumatic connections 1, 3, and 5, a CRC rating of 2, VDMA24364-B1/B2-L LABS conformity, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550566
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550566.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 20 mm
- Mounting position
- Any
- Max. no. of valve positions
- 9
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 1.2 Nm
- Product weight
- 540 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
