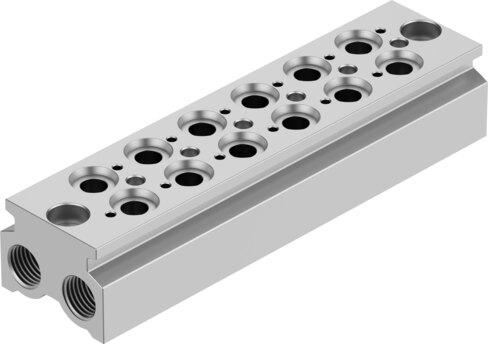

Reference imageConfirm configuration by manufacturer part number.
Festo
550572
Manifold block CPE18-3/2-PRS-3/8-6
Engineered by Festo, the part number 550572 is a wrought aluminum alloy manifold block weighing 587 g with a width dimension of 26 mm and through-hole mounting. It accommodates a maximum of 6 valve positions and 2 pressure zones, featuring G3/8 pneumatic connections 1, 3, and 5 along with internal thread pneumatic valve mounting. The unit operates within a temperature range of -5 °C to 50 °C for both ambient air and medium, handling operating pressures from -0.09 MPa to 1 MPa and a burst pressure of 5 MPa. Built with RoHS-compliant materials, a corrosion resistance class of 2, and VDMA24364-B1/B2-L LABS conformity, it requires a max tightening torque of 2 Nm for valve mounting in any position. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550572
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550572.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 26 mm
- Mounting position
- Any
- Max. no. of valve positions
- 6
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 587 g
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
