Festo
550603

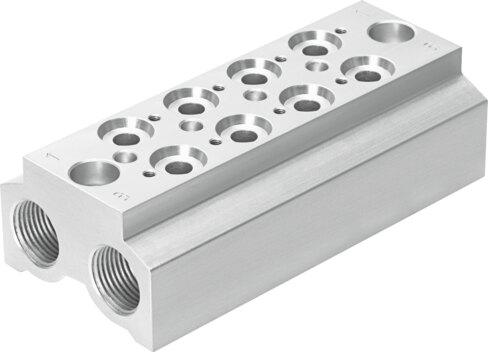

Manifold block CPE10-3/2-PRS-1/4-4-NPT
Manufactured by Festo with a 16 mm width and a wrought aluminum alloy manifold rail, this industrial component supports any mounting position via a through-hole design and accommodates up to 4 valve positions across 2 pressure zones. It features 1/4 NPT pneumatic connections 1, 3, and 5, internal thread pneumatic valve mounting with a maximum tightening torque of 0.9 ft-lbf, an operating pressure of -0.09 MPa to 1 MPa, and a burst pressure of 5 MPa. The unit has a CRC rating of 2 for moderate corrosion stress, conforms to VDMA24364-B1/B2-L LABS requirements, complies with RoHS material standards, and weighs 7.04 oz for medium and ambient temperatures ranging from 23 °F to 122 °F. Submit the exact part number 550603, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550603
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550603.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 4
- Max. no. of pressure zones
- 2
- Burst pressure
- 5 MPa | 50 bar | 725 psi
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 23 °F...122 °F
- Ambient temperature
- 23 °F...122 °F
- Max. tightening torque for valve mounting
- 0.9 ft-lbf
- Product weight
- 7.04 oz
- Manifold block type of mounting
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Pneumatic connection 1
- 1/4 NPT
- Pneumatic connection 3
- 1/4 NPT
- Pneumatic connection 5
- 1/4 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550603. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
