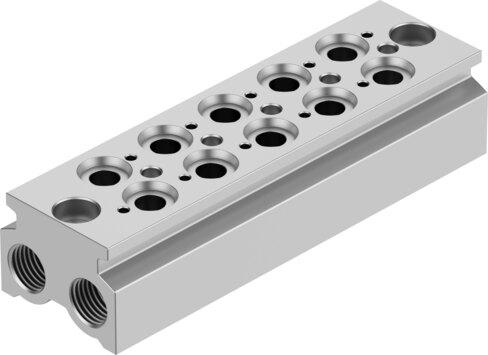

Name: Festo 550622 Manifold block CPE18-3/2-PRS-3/8-5-NPT
Brand: Festo

Manifold block CPE18-3/2-PRS-3/8-5-NPT

The Festo 550622 is a 17.7 oz industrial component featuring a wrought aluminum alloy manifold rail with a 26 mm width dimension and through-hole mounting. Built for versatile installation, it accommodates up to 5 valve positions, 2 pressure zones, and internal thread pneumatic valve mounting with 3/8 NPT connections for ports 1, 3, and 5. This RoHS-compliant unit operates within a temperature range of 23 °F to 122 °F, handling an operating pressure of -0.09 MPa to 1 MPa and a burst pressure of 5 MPa, while offering CRC 2 moderate corrosion resistance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550622
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550622.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 26 mm
Mounting position: Any
Max. no. of valve positions: 5
Max. no. of pressure zones: 2
Burst pressure: 5 MPa | 50 bar | 725 psi
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 23 °F...122 °F
Ambient temperature: 23 °F...122 °F
Max. tightening torque for valve mounting: 1.5 ft-lbf
Product weight: 17.7 oz
Manifold block type of mounting: With through-hole
Pneumatic valve mounting type: With internal thread
Pneumatic connection 1: 3/8 NPT
Pneumatic connection 3: 3/8 NPT
Pneumatic connection 5: 3/8 NPT
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 550622. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
