Festo
550702

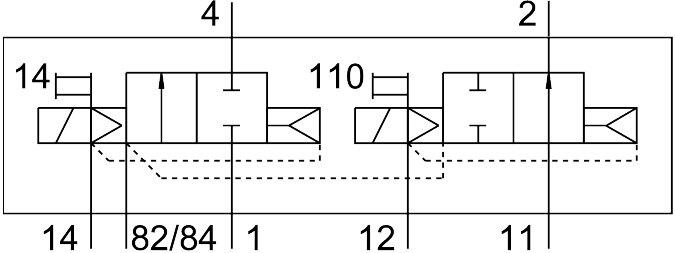

Air solenoid valve CPV10-M1H-2OLS-2GLS-M7-B-EX
The Festo 550702 is a 10 mm electrical industrial component featuring a 2x2/2 open/closed monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC with an operating pressure range of 0 MPa to 1 MPa and a normal nominal flow rate of 400 l/min, this piloted unit includes both detenting and non-detenting manual override capabilities alongside internal or external pilot air supply options. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550702
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550702.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP50
- Nominal width
- 4 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.35
- C value
- 1.6 l/sbar
- Switching time off
- 17 ms
- On switching time
- 15 ms
- Duty cycle
- 100% in combination with holding current reduction
- Required current consumption
- 0.016 A
- Max. input power Pi
- 0.76 W
- Max. input voltage Vi
- 32 V
