Name: Festo 550749 Encoder cable NEBM-M12G8-E-10-S1G9
Brand: Festo

Encoder cable NEBM-M12G8-E-10-S1G9

This Festo industrial component, part number 550749, features an 8-pin, 8-occupied-wire M12x1 A-coded round socket with a straight cable outlet on the field device side, and a 9-pin, 8-occupied-wire Sub-D square plug with a straight cable outlet on the control side. The shielded assembly operates within a DC and AC operating voltage range of 0 V to 30 V, with a nominal operating voltage of 24 V DC and 24 V AC, and comes without a label holder. Request a formal quotation by submitting the exact part number, required quantity, and your application specifications.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 550749
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 550749.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

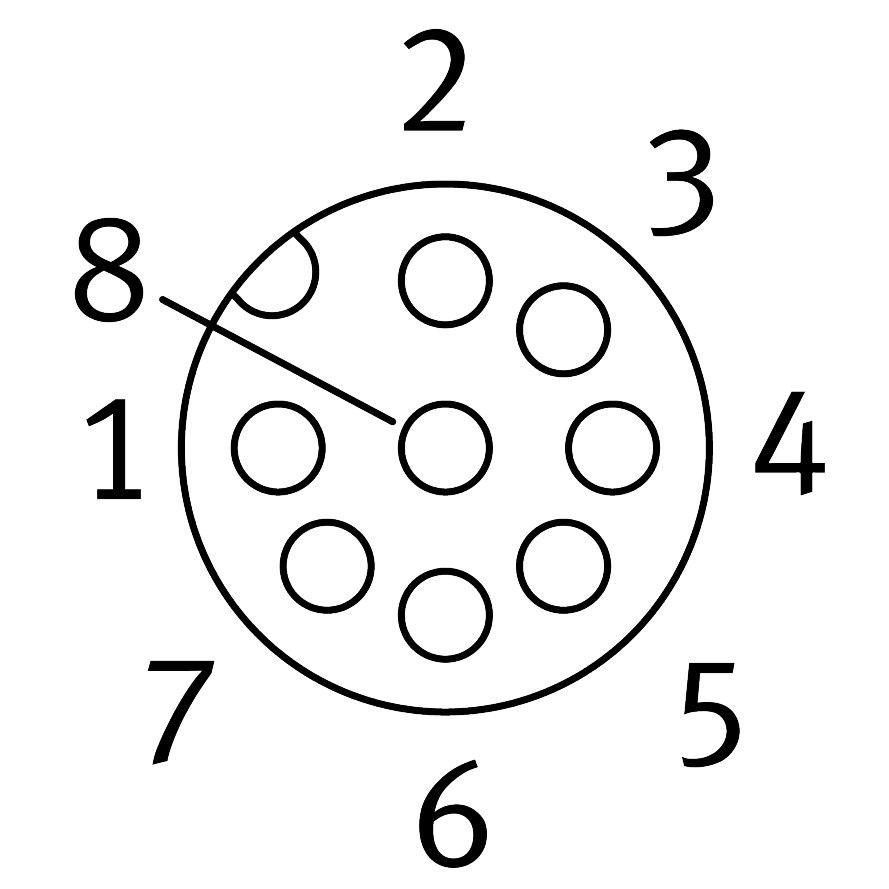

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 2, function: Control side
Electrical connection 2, design: Square
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: Sub-D
Electrical connection 2, number of pins/wires: 9
Electrical connection 2, occupied pins/wires: 8
DC operating voltage range: 0 V...30 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 0 V...30 V
Nominal operating voltage AC: 24 V
Shield: Yes
Cable length: 10 m
Cable characteristic: Suitable for energy chains
Bending radius, exible cable installation: 49 mm
Cable diameter: 6.5 mm
Cable design: 4 x 2 x 0.14 mm²
Nominal conductor cross section: 0.14 mm²
Degree of protection: IP65
Note on degree of protection: IP30 for Sub-D plug | In mounted state
Ambient temperature: -40 °C...70 °C
