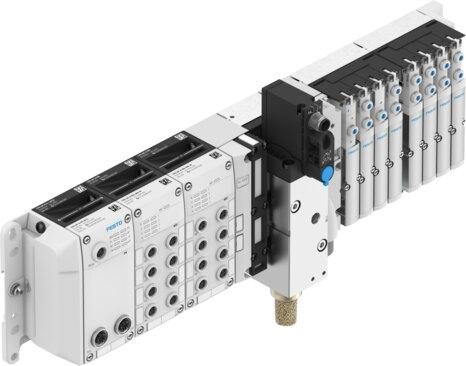

Reference imageConfirm configuration by manufacturer part number.
Festo
550808
Valve manifold MPA-FB-AP-VI
The Festo part number 550808 is a modular pneumatic valve manifold featuring mixed valve sizes and electrical actuation via AP interface or fieldbus. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 8 bar within a medium and ambient temperature range of -5 °C to 50 °C. The unit offers an IP67 degree of protection, low corrosion stress resistance (CRC 1), and multiple direct or accessory mounting configurations for arbitrary positions or horizontal H-rail setups. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- AP interface | Fieldbus
- Type of mounting
- Direct mounting via through-hole | On H-rail with accessories | On mounting frame | Screwed on | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories | with through-hole for M5 screw | with through-hole for M6 screw
- Mounting position
- Arbitrary, on H-rail: horizontal
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Note on ambient temperature
- Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...40 °C
- Relative air humidity
- 5 – 90% at 40°C | Non-condensating
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Degree of protection
- IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Operating pressure
- -0.9 bar...10 bar
- Pilot pressure
- 3 bar...8 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Note on materials
- RoHS compliant | Halogen-free | Contains no phosphoric acid esters
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550808. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
