Reference imageConfirm configuration by manufacturer part number.
Festo
550982

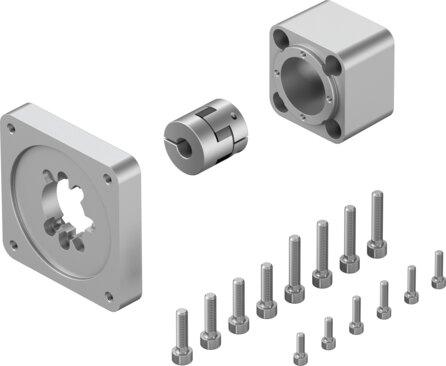

Axial kit EAMM-A-D40-87A
The Festo 550982 industrial component is designed with a nominal length of 54 mm, a mass moment of inertia of 5.87 kgmm², and a product weight of 530 g, supporting any mounting position and a maximum rotational speed of 8000 rpm. This RoHS compliant part features actuator interface codes D40 and D40C alongside a motor input interface code of 87A, delivering a transferable torque of 12.5 Nm under an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and a storage temperature range of -25 °C to 60 °C, it accommodates 0 to 95% relative air humidity and maintains VDMA24364-B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550982
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550982.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 54 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 530 g
- Interface code, actuator
- D40 | D40C
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 550982. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
