Festo
550983

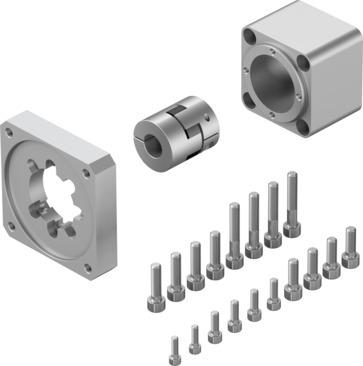

Axial kit EAMM-A-D60-100A
Engineered by Festo, part number 550983 is an industrial component featuring a nominal length of 78.2 mm and a product weight of 1170 g with a mass moment of inertia of 34.8 kgmm². This RoHS-compliant unit accommodates an actuator interface code of D60 or D60C alongside a motor-in interface code of 100A, delivering a transferable torque of 17 Nm at a maximum rotational speed of 6000 rpm in any mounting position. Operating within an ambient temperature range of -10 °C to 60 °C, a storage temperature of -25 °C to 60 °C, and a relative air humidity of 0 to 95 %, the IP40-rated assembly complies with VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550983
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550983.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.2 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1170 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 100A
- Note on materials
- RoHS-compliant
