Festo
550995

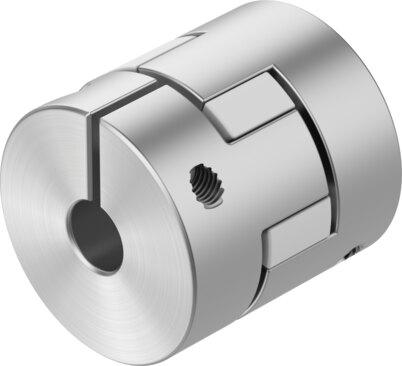

Coupling EAMC-30-35-6.35-12
The Festo 550995 industrial component features a size 30 design with a 6.35 mm diameter for holder 1 and a 12 mm diameter for holder 2, offering a nominal length of 35 mm and a transferable torque of 7.5 Nm. Weighing 45 g with a mass moment of inertia of 6.1 kgmm², this RoHS-compliant part supports any mounting position and a maximum rotational speed of 8000 rpm while complying with VDMA24364-B2-L LABS conformity. It operates within ambient and storage temperatures of -25 °C to 60 °C and relative air humidity levels from 0 to 95%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 550995
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 550995.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 6.35 mm
- Diameter of holder 2
- 12 mm
- Size
- 30
- Nominal length
- 35 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 6.1 kgmm²
- Transferable torque
- 7.5 Nm
- Product weight
- 45 g
- Note on materials
- RoHS compliant
