Festo
551005

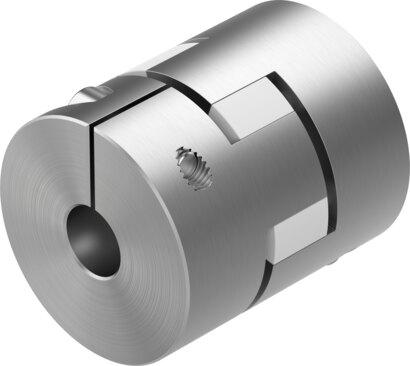

Coupling EAMC-42-50-12-19
This Festo industrial component, part number 551005, features a size 42 construction with a nominal length of 50 mm and accommodates a holder 1 diameter of 12 mm alongside a holder 2 diameter of 19 mm. The unit supports any mounting position, a maximum rotational speed of 6000 rpm, a transferable torque of 17 Nm, and a mass moment of inertia of 34.8 kgmm² at a product weight of 138 g. Designed with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, it operates and stores within ambient temperatures of -25 °C to 60 °C and relative air humidity ranging from 0 to 95%. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 551005
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 551005.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 12 mm
- Diameter of holder 2
- 19 mm
- Size
- 42
- Nominal length
- 50 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 138 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 551005. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
