Festo
551447

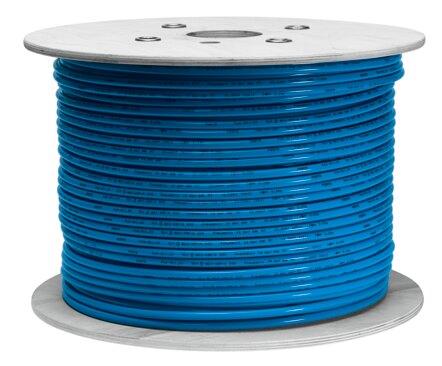

Plastic tubing PEN-10X1,5-BL-300
This Festo industrial component, part number 551447, is a blue pneumatic tubing with a 10 mm outside diameter, 7 mm inside diameter, and a weight of 0.03766 kg/m, featuring a Shore hardness of D 52 +/-3 and RoHS-compliant materials. It operates within a temperature-dependent pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and handles water up to 0.6 MPa at 0 to 50 °C, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water as operating media. Certified by TÜV under certificate B 013277 0527 00 with VDMA24364-B2-L LABS conformity, the tubing is suitable for energy chains and withstands ambient temperatures from -30 °C to 60 °C with a minimum bending radius of 23.5 mm and a bending radius relevant for flow rate of 40 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 551447
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 551447.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 10 mm
- Bending radius relevant for ow rate
- 40 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 23.5 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -30 °C...60 °C
- Product weight by length
- 0.03766 kg/m
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- Blue
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- Protective grounding
