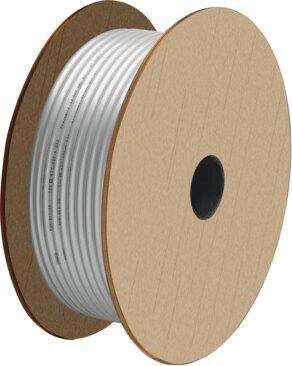

Reference imageConfirm configuration by manufacturer part number.
Festo
551452
Plastic tubing PEN-8X1,25-SI-400
The Festo 551452 is an industrial component featuring an 8 mm outside diameter, a 5.7 mm inside diameter, and a silver color with a Shore hardness of D 52 +/-3. This pneumatic tubing operates within a temperature-dependent pressure range of -0.095 MPa to 1 MPa and supports compressed air as per ISO 8573-1:2010 [7:-:-] as well as liquid water. Designed with a minimum bending radius of 22.5 mm, a bending radius relevant for flow rate of 35 mm, and suitability for energy chains, it holds TÜV certification under certificate B 013277 0527 00 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 551452
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 551452.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 8 mm
- Bending radius relevant for ow rate
- 35 mm
- Inside diameter
- 5.7 mm
- Min. bending radius
- 22.5 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -30 °C...60 °C
- Product weight by length
- 0.02327 kg/m
- Pneumatic connection
- For plug connection outside diameter 8 mm | For plug connection outside diameter 5/16" | For barbed tting, inside diameter 6 mm, with union nut | For barbed tting, inside diameter 6 mm
- Color
- Silver
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- Protective grounding
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 551452. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
