Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

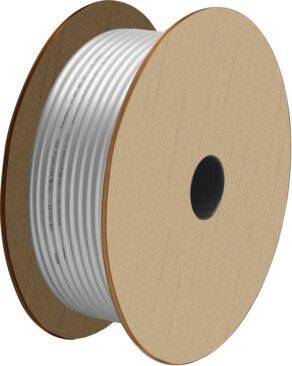

Reference imageConfirm configuration by manufacturer part number.
Festo
551454
Plastic tubing PEN-12X1,75-SI-200
This Festo industrial component, part number 551454, is a silver pneumatic tubing featuring a 12 mm outside diameter, an 8.4 mm inside diameter, and a D 52 +/-3 Shore hardness with a product weight by length of 0.05423 kg/m. The tubing operates with compressed air as per ISO 8573-1:2010 [7:-:-] or water at a temperature-dependent operating pressure from -0.095 MPa to 1 MPa, and is certified by TÜV under certificate B 013277 0527 00 with VDMA24364-B2-L LABS conformity. Designed with a 33 mm minimum bending radius and a 58 mm bending radius relevant for flow rate, it is suitable for energy chains within an ambient temperature range of -30 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 551454
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 551454.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 12 mm
- Bending radius relevant for ow rate
- 58 mm
- Inside diameter
- 8.4 mm
- Min. bending radius
- 33 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -30 °C...60 °C
- Product weight by length
- 0.05423 kg/m
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Silver
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- Protective grounding
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 551454. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
