Festo
552000

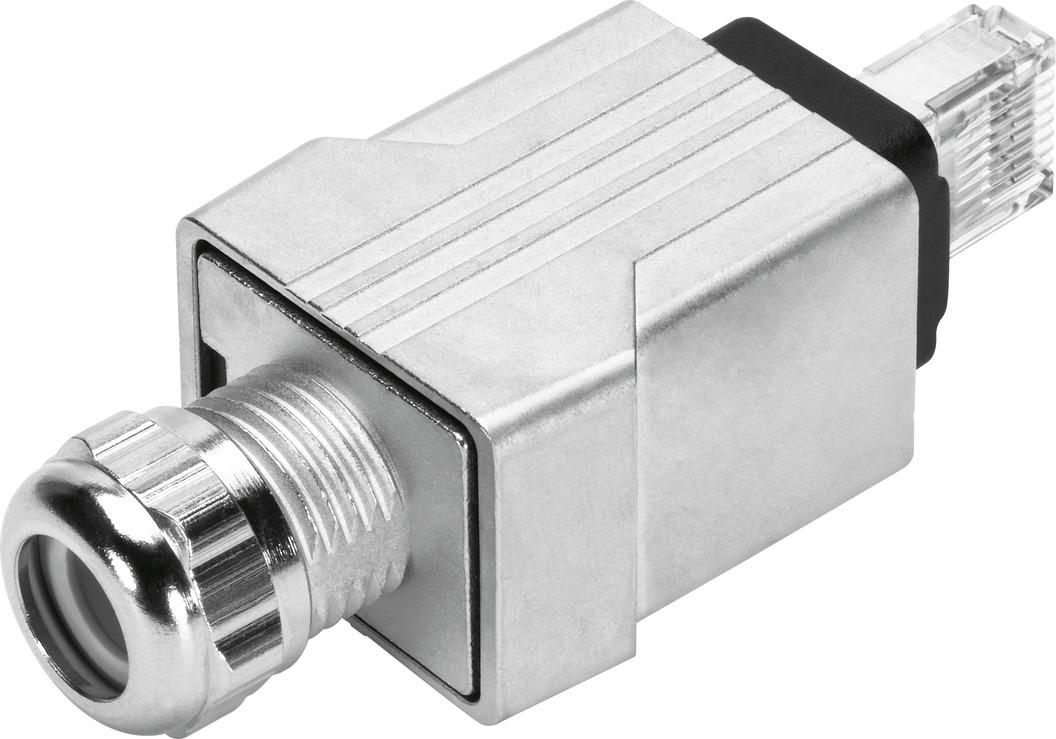

Plug FBS-RJ45-PP-GS
Festo Plug FBS-RJ45-PP-GS, part number 552000, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 552000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Width
- 30 mm
- Height
- 72 mm
- Length
- 22 mm
- Product weight
- 60 g
- Note on fieldbus interface
- PROFINET
- Ethernet cable specification
- Typ: CAT.5 | Individual wire diameter: max. 1.6 mm | 0.13 - 0.36 mm², 7-wire | 0.13 - 0.36 mm², 1-wire
- Protection against direct and indirect contact
- PELV
- Approved cable diameter
- 5 mm...8 mm
- Degree of protection
- IP65 | IP67 | as per IEC 60529
- Ambient temperature
- -40 °C...70 °C
- Storage temperature
- -40 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Die-cast zinc | Nickel-plated
- Seals material
- NBR
- Material of pin contacts
- Copper alloy | Nickel-plated and gold-plated
