Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

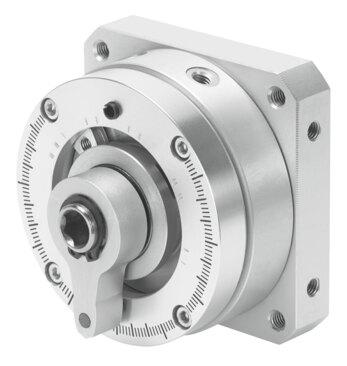

Reference imageConfirm configuration by manufacturer part number.
Festo
552083
Rotary actuator DSM-63-270-A-B
The Festo 552083 is a double-acting industrial component featuring a rotary vane structural design with a size 63 and a swivel angle from 0 degrees to 270 degrees. Operating at pressures between 0.15 MPa and 1 MPa, this unit delivers a theoretical torque of 40 Nm at 6 bar with a maximum swivel frequency of 1.6 Hz. It accommodates any mounting position using internal threading and supports an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552083
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552083.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 50 mm
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 1.6 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 1050 N
- Max. axial force
- 500 N
- Max. radial force
- 500 N
- Theoretical torque at 6 bar
- 40 Nm
- Product weight
- 4220 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
- Housing material
- Anodized aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552083. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
