Festo
552116

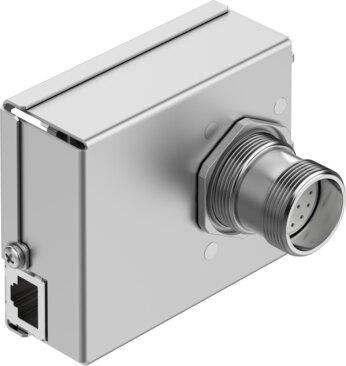

Interface housing CAMI-C
The Festo 552116 industrial component operates on a nominal DC voltage of 24 V and features VDMA24364 Zone III LABS conformity with RoHS-compliant materials. Measuring 67.2 mm in width, 76.1 mm in height, and 26 mm in length, this IP65-rated unit mounts on a control cabinet wall via an M25 connection in any mounting position. Its electrical interface includes plug connections with -/17-pin/11-pin/9-pin configurations and RJ45, Coninvers M25, spring-loaded terminal, and Sub-D options. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552116
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552116.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal operating voltage DC
- 24 V
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65 | As per IEC 60529
- Type of mounting
- On control cabinet wall M25
- Note on materials
- RoHS compliant
- Mounting position
- Any
- Electrical connection
- -/17-pin/11-pin/9-pin | RJ45/Coninvers M25/spring-loaded terminal/Sub-D | Plug/plug/plug/plug
- Width
- 67.2 mm
- Height
- 76.1 mm
- Length
- 26 mm
