552132

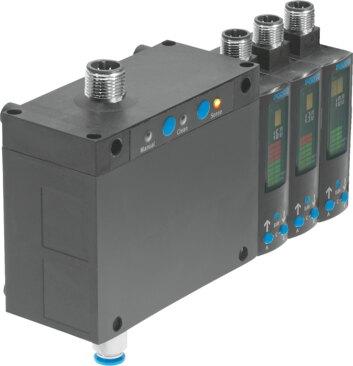

Name: Festo 552132 Air gap sensor SOPA-CM3H-R1-HQ6-2P-M12
Brand: Festo

Air gap sensor SOPA-CM3H-R1-HQ6-2P-M12

The Festo part number 552132 is a pneumatic distance measuring industrial component with a sensing range of 20 µm to 200 µm and a repetition accuracy of ±2.5 µm. It operates within a 4 bar to 7 bar operating pressure and a 0.8 bar to 1.6 bar supply pressure using compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication possible. Featuring a DC operating voltage range of 22.8 V to 26.4 V and a 2xPNP switching output, this RoHS-compliant device bears RCM, c UL us, CE, UKCA, and KC-EMV marks. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 552132
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 552132.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Note on materials: RoHS compliant
Detected variable: Distance
Measuring principle: Pneumatic
Sensing range: 20 µm...200 µm
Operating pressure: 4 bar...7 bar
Supply pressure: 0.8 bar...1.6 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Ambient temperature: 0 °C...50 °C
Repetition accuracy in ± µm: 2.5 µm
Switching output: 2xPNP
Switching function: Window comparator | Threshold value with variable hysteresis
Switching element function: N/C contact/N/O contact, switchable
Max. output current: 100 mA
Short-circuit protection: Yes
DC operating voltage range: 22.8 V...26.4 V
Max. current consumption: 850 mA
Reverse polarity protection: for all electrical connections
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, type of mounting: Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
Type of mounting: Alternatively:

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 552132. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
