Festo
552137

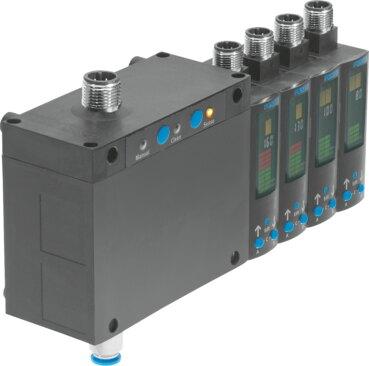

Air gap sensor SOPA-CM4H-R1-HQ6-2N-M12
The Festo 552137 is an industrial component operating on a pneumatic measuring principle to detect distance within a sensing range of 20 µm to 200 µm at an operating pressure of 4 bar to 7 bar and a supply pressure of 0.8 bar to 1.6 bar. This device features a DC operating voltage range of 22.8 V to 26.4 V, 2xNPN switching outputs with a max output current of 100 mA, short-circuit protection, and a repetition accuracy of ± 2.5 µm. It operates using compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of 0 °C to 50 °C, carries RCM, c UL us, CE, UKCA, and KC-EMV certifications, and complies with RoHS material standards. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552137
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552137.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Detected variable
- Distance
- Measuring principle
- Pneumatic
- Sensing range
- 20 µm...200 µm
- Operating pressure
- 4 bar...7 bar
- Supply pressure
- 0.8 bar...1.6 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± µm
- 2.5 µm
- Switching output
- 2xNPN
- Switching function
- Window comparator | Threshold value with variable hysteresis
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 22.8 V...26.4 V
- Max. current consumption
- 1100 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
- Type of mounting
- Alternatively:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552137. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
