Festo
552145

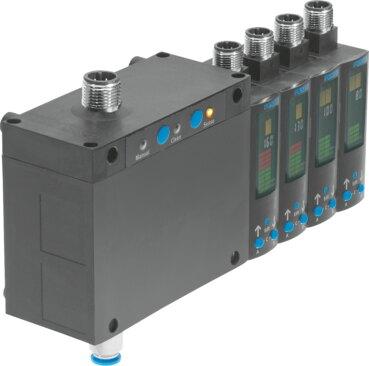

Air gap sensor SOPA-CM4H-R1-WQ6-2N-M12
The Festo part number 552145 is a pneumatic distance measuring component utilizing a sensing range of 20 µm to 200 µm with a repetition accuracy of ± 2.5 µm. It operates within a supply pressure of 0.8 bar to 1.6 bar and an operating pressure of 4 bar to 7 bar using compressed air as per ISO 8573-1:2010 [7:4:4], featuring a DC operating voltage range of 22.8 V to 26.4 V and 2xNPN switching outputs. Certified with RCM compliance, c UL us recognition, KC-EMV, and CE and UKCA markings per EMC and RoHS directives, this RoHS-compliant unit operates in ambient temperatures from 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552145
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552145.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Detected variable
- Distance
- Measuring principle
- Pneumatic
- Sensing range
- 20 µm...200 µm
- Operating pressure
- 4 bar...7 bar
- Supply pressure
- 0.8 bar...1.6 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± µm
- 2.5 µm
- Switching output
- 2xNPN
- Switching function
- Window comparator | Threshold value with variable hysteresis
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 22.8 V...26.4 V
- Max. current consumption
- 1100 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
- Type of mounting
- Alternatively:
