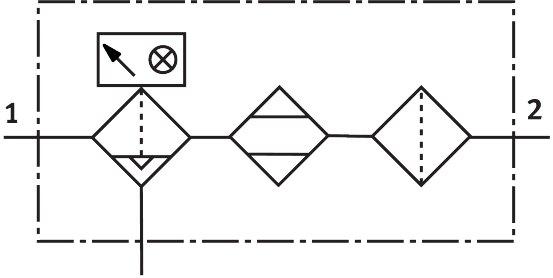

Reference imageConfirm configuration by manufacturer part number.
Festo
552172
Desiccant air dryer PDAD-22-G3/8
The Festo 552172 is a cold-regenerating adsorption dryer featuring a structural design supporting both vertical and horizontal mounting positions. Operating with an inlet pressure range of 4 bar to 16 bar, this industrial component achieves a pressure dew point of -40 °C and -70 °C for a reduced rate of flow, utilizing compressed air as per ISO 8573-1:2010 [6:-:4]. It requires power consumption of 9.6 W at 24 VDC or 16 VA at 230 VAC, maintains an IP65 degree of protection with protection class II, and exhibits a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552172
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552172.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Vertical | Horizontal
- Structural design
- Cold-regenerating adsorption dryer
- Inlet pressure 1
- 4 bar...16 bar
- Power consumption at 24 VDC
- 9.6 W
- Power consumption with 230 VAC
- 16 VA
- Contamination level
- 2
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible | No water in liquid form
- Pressure dew point
- -40 °C
- Pressure dew point for reduced rate of ow
- -70 °C
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [2:1:2] at -70°C | Compressed air as per ISO 8573-1:2010 [2:2:2] at -40°C
- Temperature of medium
- 2 °C...50 °C
- Degree of protection
- IP65
- Protection class
- II
- Overvoltage category
- II
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 16500 g
- Electrical connection 1, function
- Power supply AC
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection pattern type C as per industry standard, 9.4 mm
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 2
