Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

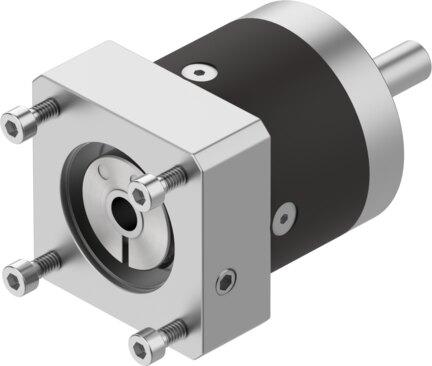

Reference imageConfirm configuration by manufacturer part number.
Festo
552188
Gearbox EMGA-60-P-G3-SAS-55
The Festo part number 552188 is an IP54-rated industrial component featuring a 3:1 planetary gear ratio, a 60 mm gearbox flange size, and a 55 mm motor flange size. This RoHS-compliant assembly delivers a continuous output torque of 22 Nm, a maximum output torque of 35.2 Nm, and a maximum actuator speed of 13000 rpm across an operating temperature range of -25 °C to 90 °C. It provides a torsional backlash of 0.17 deg, a torsional rigidity of 2.3 Nm/arcmin, a mass moment of inertia of 0.135 kgcm², and a maximum efficiency of 98% while supporting a permissible axial shaft load of 500 N and radial shaft load of 400 N at a product weight of 900 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552188
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552188.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 55 mm
- Torsional backlash
- 0.17 deg
- Gearbox type
- Planetary gear
- Gear ratio
- 3:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 22 Nm
- Mass moment of inertia, gearbox
- 0.135 kgcm²
- Max. output torque
- 35.2 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 2.3 Nm/arcmin
- Product weight
- 900 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 55A
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552188. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
