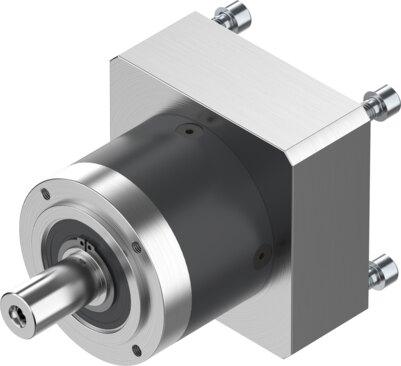

Reference imageConfirm configuration by manufacturer part number.
Festo
552194
Gear unit EMGA-80-P-G3-SAS-100
Engineered with a planetary gear set and a 3:1 gear ratio, this Festo industrial component features an 80 mm gearbox flange size, a 100 mm motor flange size, an 80G output shaft interface, and a 100A actuator interface. The unit delivers a continuous output torque of 85 Nm, a maximum output torque of 136 Nm, a maximum actuator speed of 7000 rpm, and a maximum efficiency of 98%, supported by a torsional rigidity of 6 Nm/arcmin and a torsional backlash of 0.12 deg. Built with a product weight of 2100 g, a gearbox mass moment of inertia of 0.77 kgcm², an IP54 degree of protection, and VDMA24364-B2-L LABS conformity, it operates within a temperature range of -25 °C to 90 °C while accommodating permissible axial and radial shaft loads of 1000 N and 750 N respectively, using RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552194
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552194.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 85 Nm
- Mass moment of inertia, gearbox
- 0.77 kgcm²
- Max. output torque
- 136 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 6 Nm/arcmin
- Product weight
- 2100 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552194. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
