Reference imageConfirm configuration by manufacturer part number.
Festo
552195

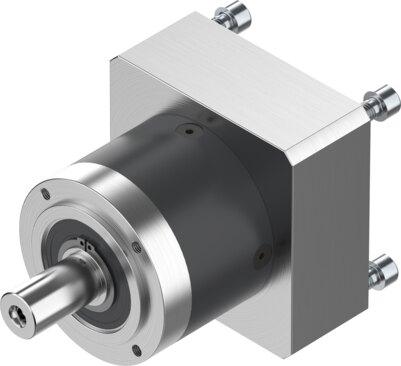

Gear unit EMGA-80-P-G5-SAS-100
The Festo 552195 is an industrial planetary gear set featuring an 80 mm gearbox flange size and a 100 mm motor flange size with an 80G output shaft interface and a 100A actuator interface. This RoHS compliant component delivers a 5:1 gear ratio, a continuous output torque of 110 Nm, a maximum output torque of 176 Nm, and a maximum actuator speed of 7000 rpm while maintaining a torsional backlash of 0.12 deg, a torsional rigidity of 6 Nm/arcmin, and a maximum efficiency of 98%. Weighing 2100 g with a gearbox mass moment of inertia of 0.45 kgcm², the unit operates in temperatures ranging from -25 °C to 90 °C and accommodates a permissible axial shaft load of 1000 N alongside a permissible radial shaft load of 750 N under an IP54 degree of protection and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 552195
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 552195.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 5:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 110 Nm
- Mass moment of inertia, gearbox
- 0.45 kgcm²
- Max. output torque
- 176 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 6 Nm/arcmin
- Product weight
- 2100 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 552195. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
